Description

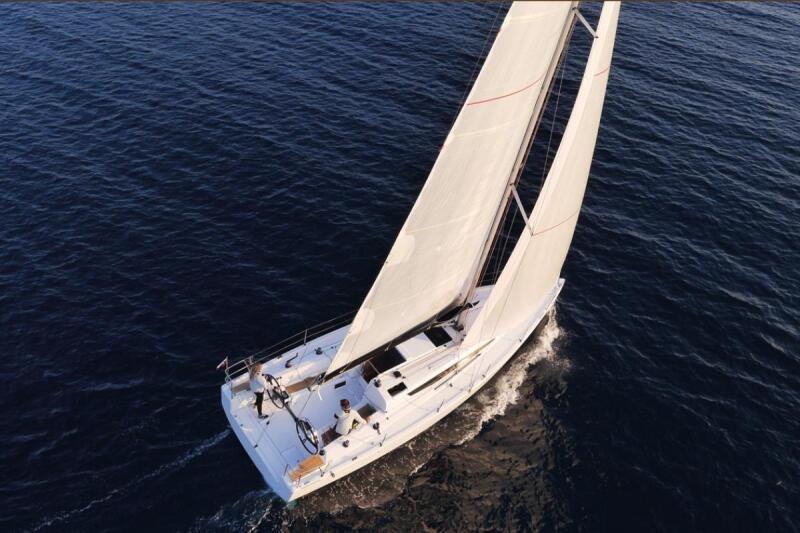

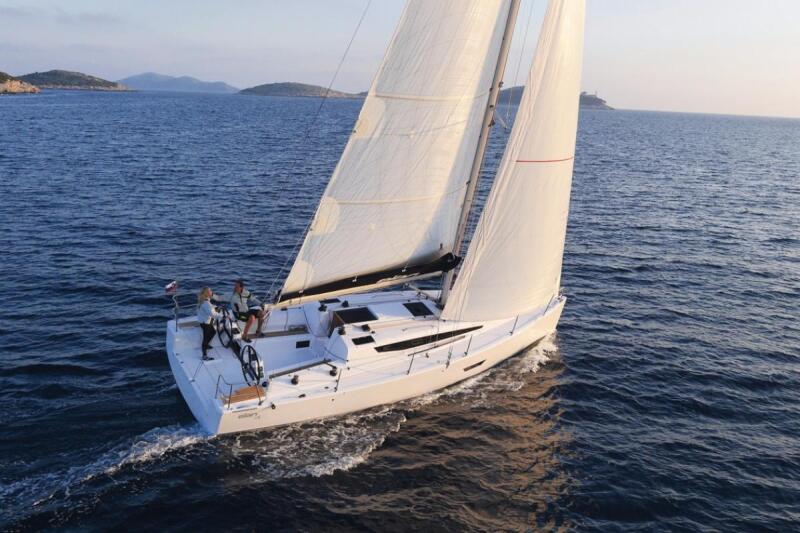

Developed to satisfy diverse modes of sailing, from short-handed sailing to crewed racing or family cruising, this yacht does it all amazingly well. Its main design feature, the twin rudders, broad stern and chined hull, all work hand-in-hand towards different goals sparkling performance, improved stability, excellent control and a comfortable interior.






The Elan E4 is available for viewings by appointment only. Contact the Elan Specialist Team to schedule a call back.


This stunning vessel is currently sat at Deacons Marina, on the hard, accessible by appointment only.


Included in the sale of this boat is 1 year's free berthing at Haslar Marina, Gosport, plus many more benefits to be enjoyed. Never mind the barnacle fused wine bottle gifted to whomever takes this 40ft beauty home.


You're sure to enjoy some proper, fun sailing. Don't hesitate to contact us for more information.




Construction

Designed by Humphreys Yacht Design, the Elan E4 is built to exacting standards.


The hull is built using Vacuum assisted Infusion lamination (VAIL) technology to considerably improve, strength and mechanical and chemical properties of the hull. High quality materials, SVG gelcoat for optimal chemical resistance against osmosis and mirror finish, sandwich construction using multi-directional fibreglass, structural closed cells foam core on hull sides and single skin on hull bottom and loaded areas, vinyl ester skin coat and Isophtalic polyester resin are used for a high quality product. Powerful inner structure distributes all loads from the keel and rig effectively with a minimum flexing of the hull.


DIMENSIONS
LENGTH OVERALL 10.60 m | 34 9 ft
HULL LENGTH 10.60 m | 34 9 ft
LENGTH AT WATERLINE 10.10 m | 33 1 ft
BEAM 3.50 m | 11 6 ft
DRAFT (standard) 2.15 m | 7' 1"

Additional options already selected

SAIL READY PACK
OneSails tri-radial cut, full batten mainsail with Selden sliders
OneSails Dacron furling jib
Lazy bag with lazy jacks
Electrical windlass 1000W with additional battery (95Ah)
Anchor Lewmar "Delta", with 50m galvanised chain
Windlass control unit with chain counter

B&G NAVIGATIONAL PACK
B&G Autopilot NAC -3 System with Triton2 autopilot controller keypad and L&S Hydraulic Linear Drive
B&G Triton2 Wind, Speed, Depth system with display
B&G Triton2 additional display
B&G Zeus3 7'' Touch screen multifunctional navigation display (charts not included)
B&G VHF V60 with build in AIS receiver

OneSails Gennaker sail
Reading lights in saloon and cabins with USB charging
Upholstery upgrade from standard - choice of microfibre material (Light Sand)
Socket in each cabin, galley and head 230V
Sprayhood
Guard rail exits
Cockpit cushions
Tricolour LED navigation light on mast top
Webasto Air Top EVO 40 heating
Audio pack base - Fusion MS-RA210 with FM-F65RV speakers in saloon and cockpit
Large bathing platform
Additional helmsman seats in cockpit with storage

Mechanicals and Electricals

D1-30 Volvo Penta D1-30 30HP
Sail drive

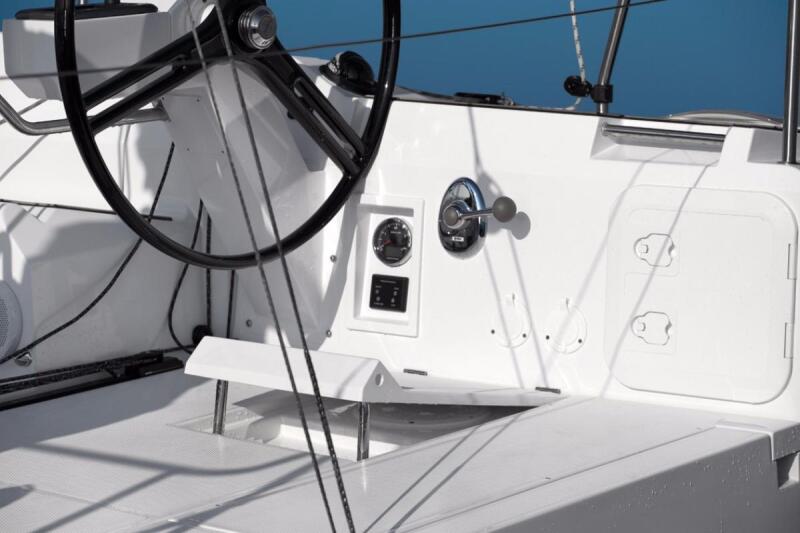

S/S engine control lever in cockpit and engine control panel
Fuel tank 63 l
Fuel filter with water separator
2 blade Flex-o-fold folding propeller


ELECTRICAL SYSTEM

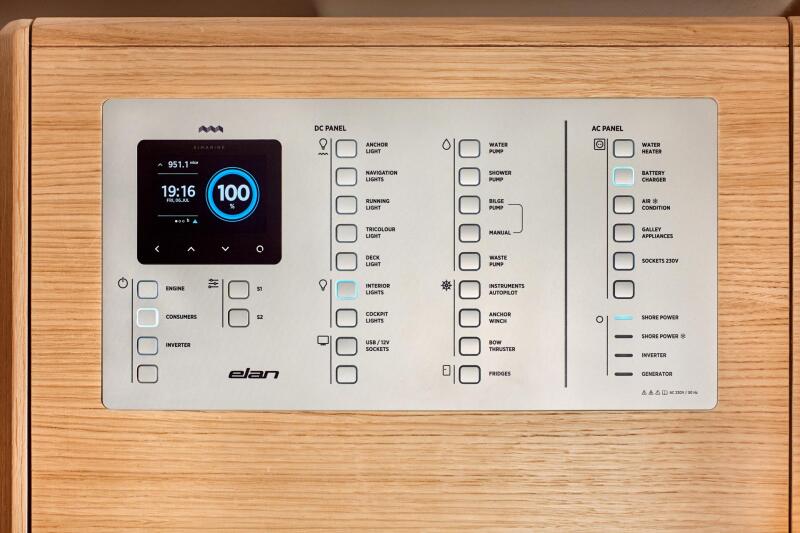

12 V control panel with voltmeter for batteries, fresh water and fuel level indicator
Shore connection installation with 15m shore power cable 230V
Battery charger 12V-40A
3 separate 12V AGM batteries (70Ah engine battery and 2 95Ah service battery)
Navigation lights according to Col Reg
Cockpit ambient LED lights
Courtesy lights at companionway
Double IP67 USB socket and 12v socket in cockpit

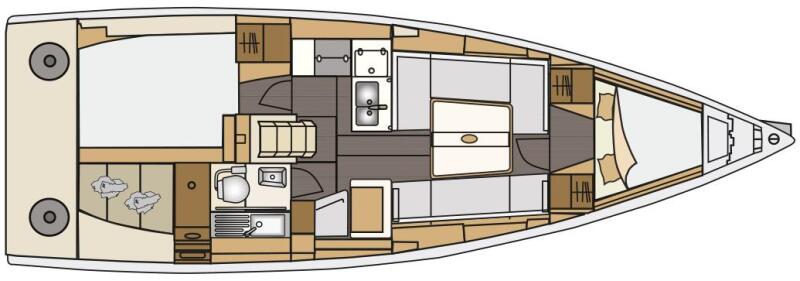

Accommodation

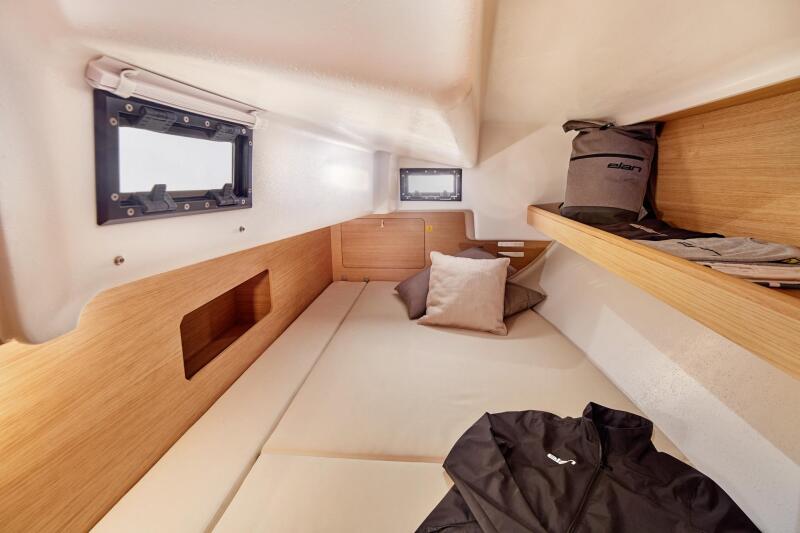

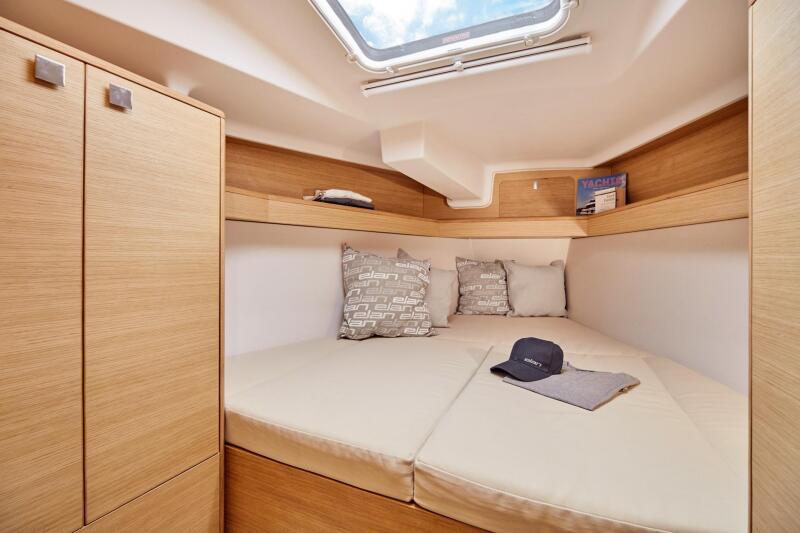

FORWARD CABIN
Double berth
2 lateral stowage shelves
Port and starboard lockers
Stowage under berth
Reading LED light
Overhead LED light
Flush deck escape hatch
Blind over hatch

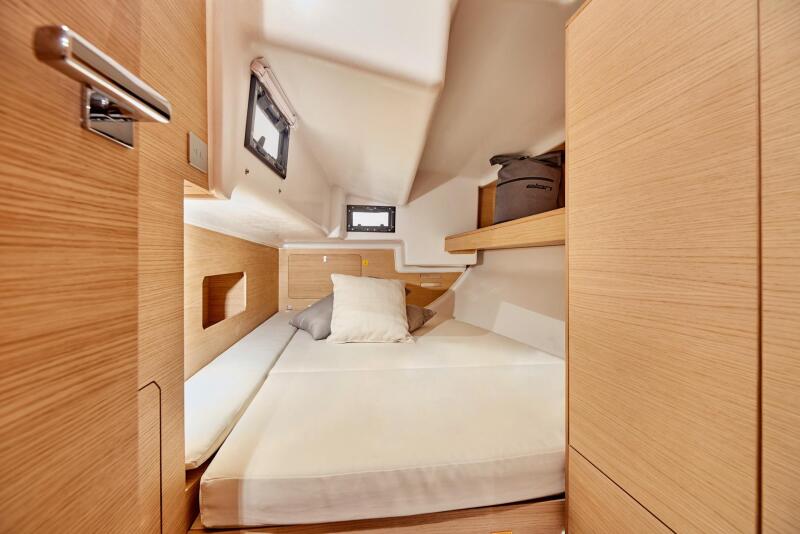

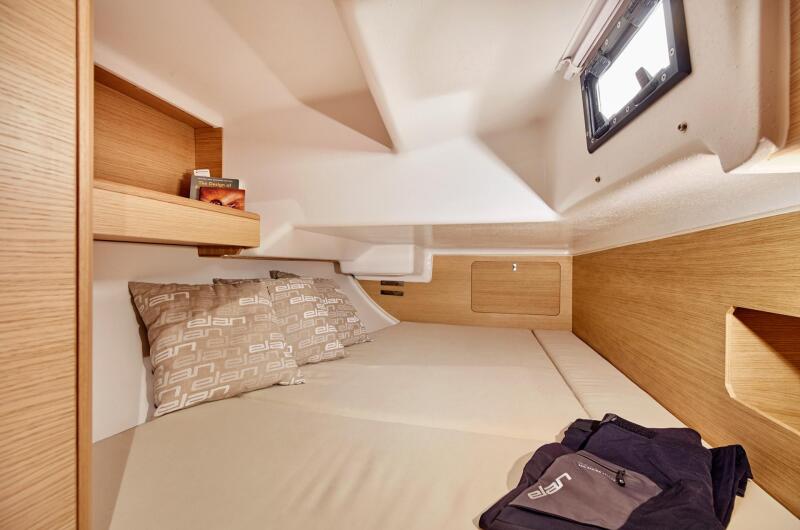

AFT CABIN
Double berth
Storage under the berth
2 lateral storage shelves
Storage locker
Reading LED light
Overhead LED light
Flush opening deck hatch per cabin and 2 opening portlights per cabin
Curtains over portlights

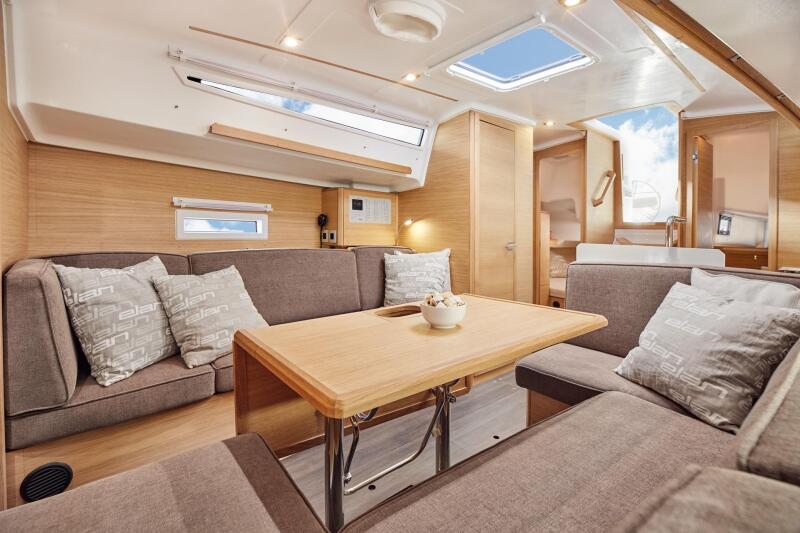

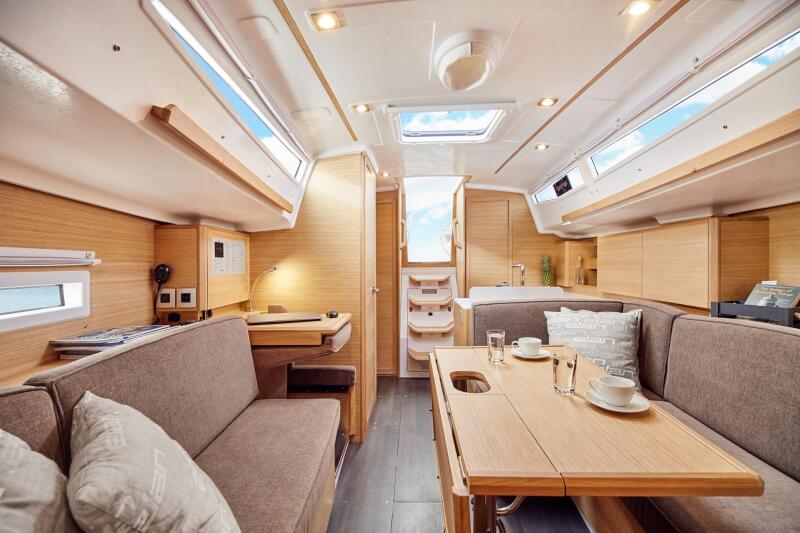

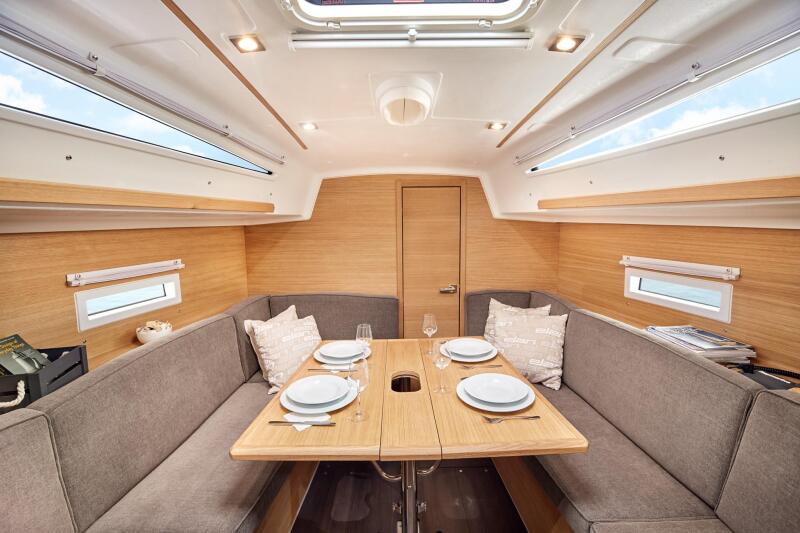

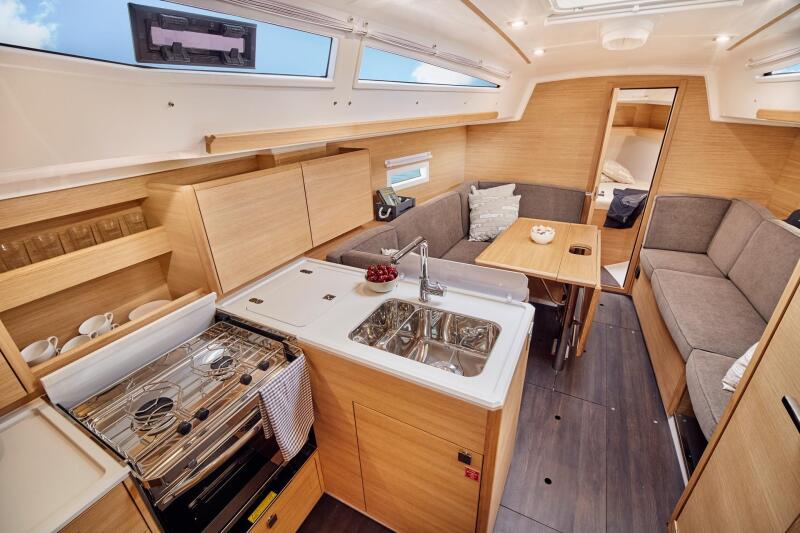

SALOON
Saloon table
U shape saloon seating with conversion into a double berth
Custom deck port lights
Flush deck escape hatch
Lockers and shelves above backrests along the hull on both sides
Overhead LED lights
ambient LED lights
Curtains over portlights and blinds over hatch
2 hull portlights

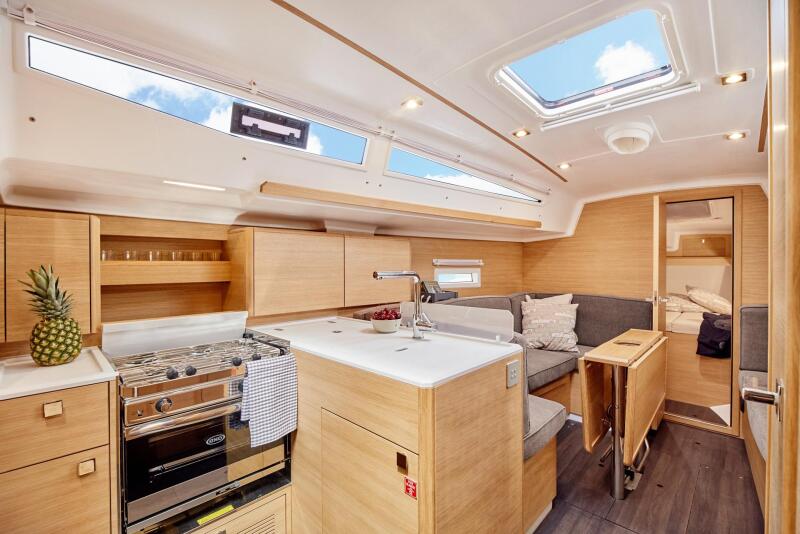

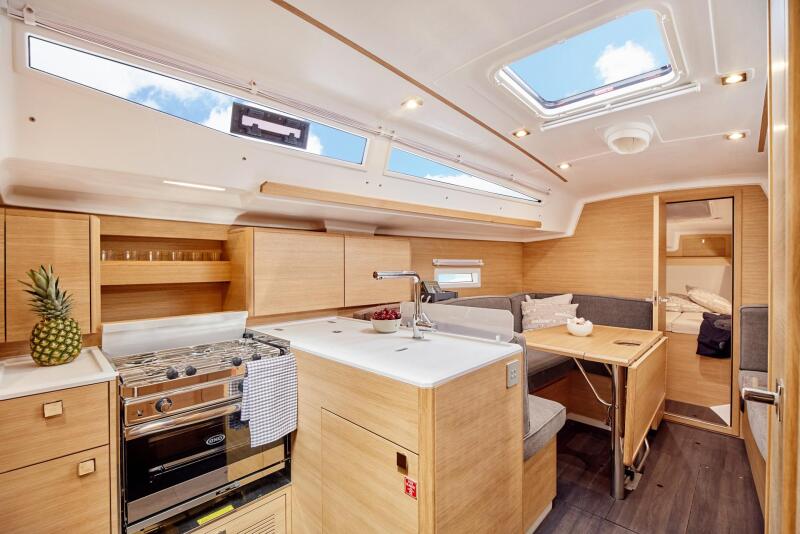

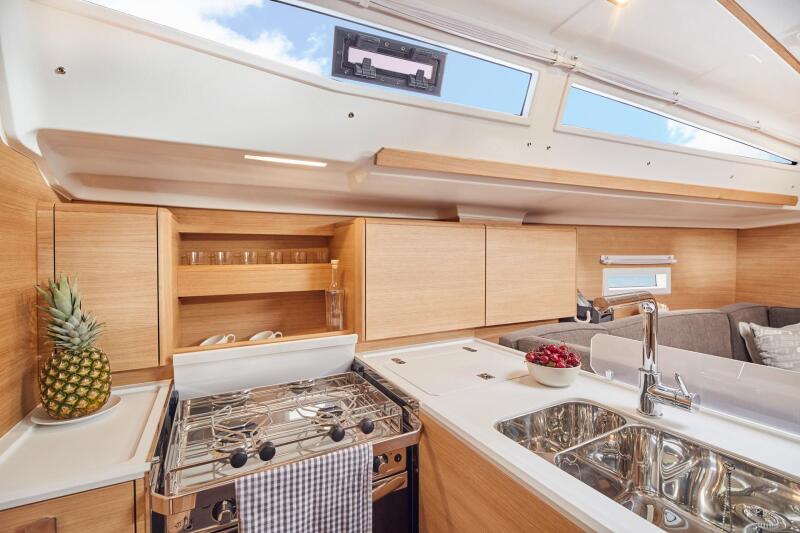

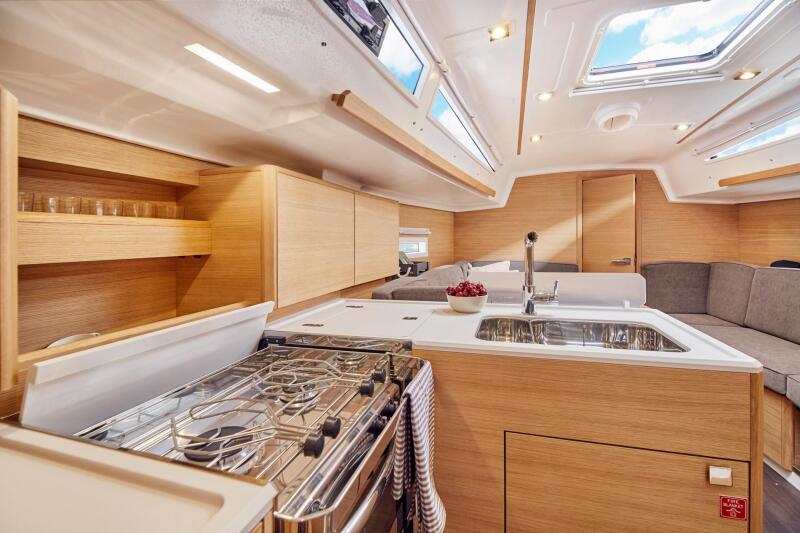

GALLEY
L-shaped galley
Fridge 12V with accumulation plate in cool box
S/S gas cooker with 2 rings and oven
Double sink with tap and pressurised water system
Cooker and sink covers Lockers, cupboards and drawer
Opening portlight above galley
Overhead LED light, LED light over the worktop
Curtains over portlights and blinds over hatch
Acrylic water protector

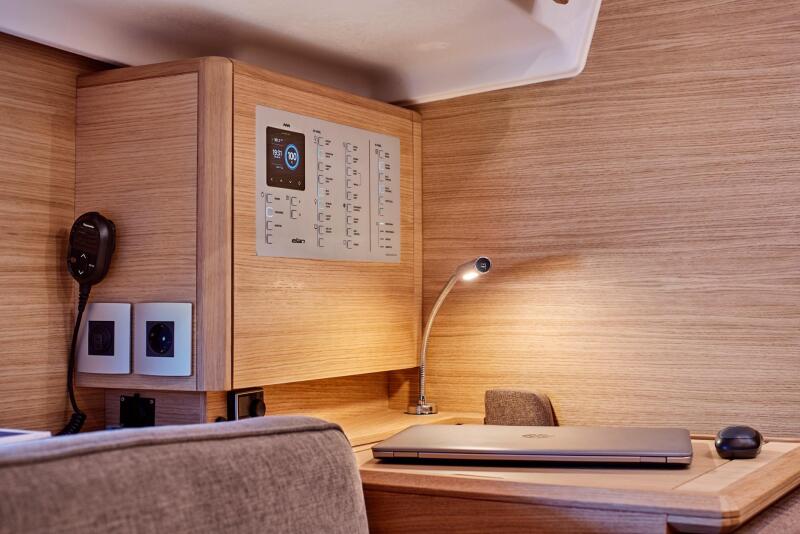

NAVIGATION STATION
Chart table
Reading LED spotlight
Shelves and lockers below opening portlight
USB socket inside (1 pcs)

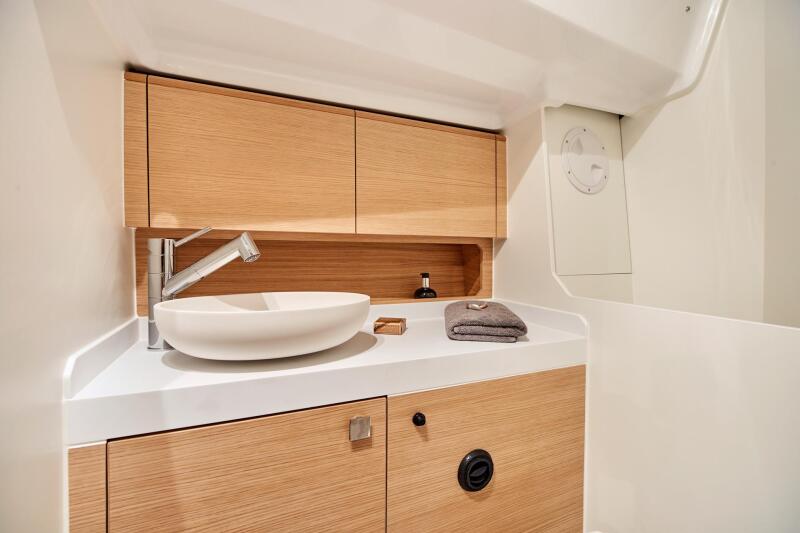

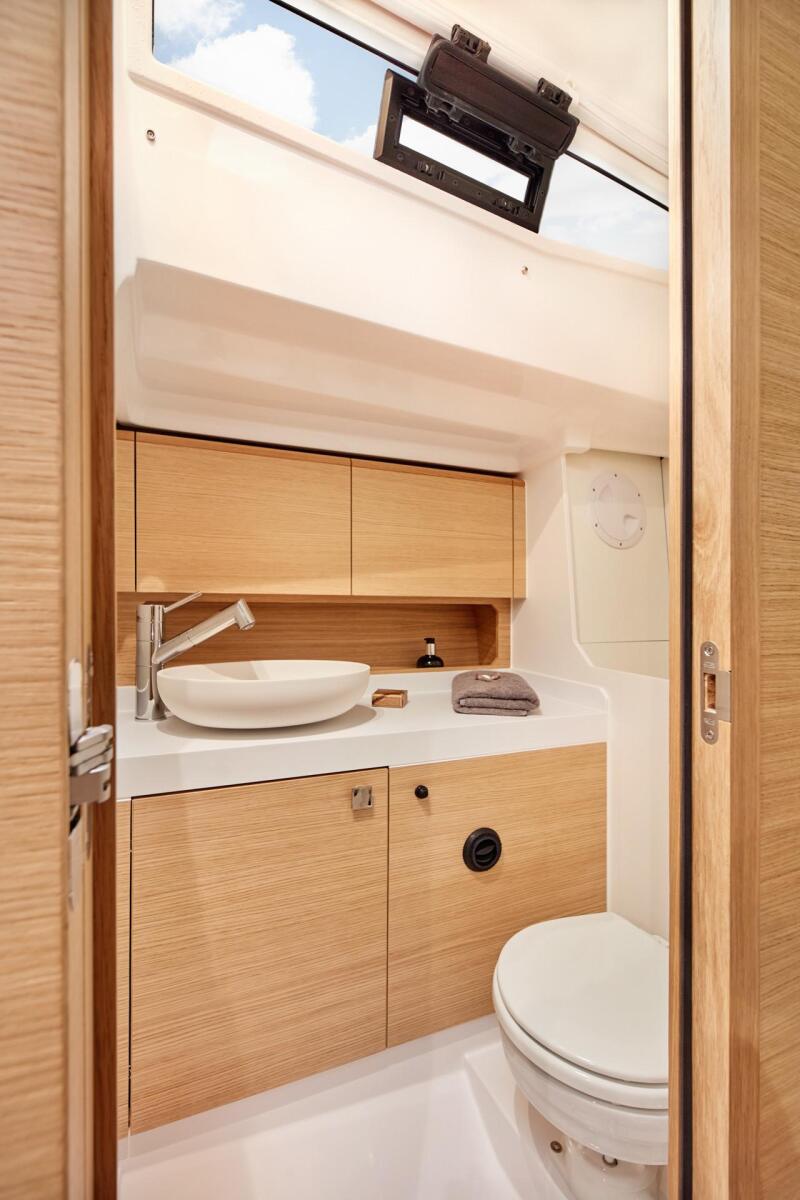

HEAD / SHOWER COMPARTMENT
Marine toilet
Washbasin with pressurised tap
Storage locker under the sink
Locker with mirror
Electric shower drain pump
Wet locker
Overhead LED light
Opening flush deck hatch
Opening portlight
Curtains over portlight

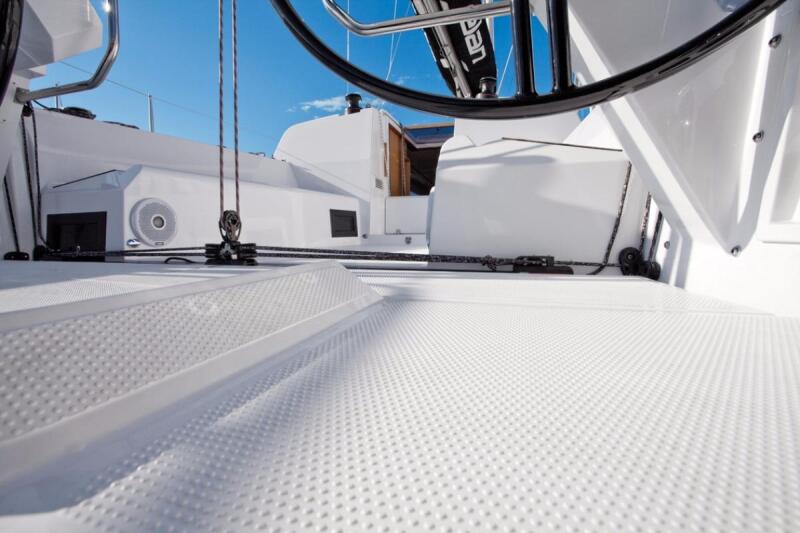

Deck Equipment

2 halyard winches on coach roof Harken B35.2
2 genoa winches Harken B40.2
2 main sail winches Harken B35.2
Harken mainsheet track recessed in the cockpit floor with T mainsheet system
2 jib sheets tracks with cars adjustable from cockpit
2 deck organisers
2 sets of clutches Spinlock
Gennaker deck gear with carbon retractable gennaker pole
Steering compass
2 white composite steering wheels
S/S Pulpits, pushpits and stanchions with 2 lifelines
Bow anchor fitting removable S/S
4 Retractable mooring cleats
2 Retractable midship cleats
Winch handle pocket
Cockpit locker on starboard side
Gas bottle locker draining outboard
S/S bathing ladder, grab rails on coach roof
Removable cockpit table


GROUND TACKLE
Electric anchor windlass
Lewmar "Delta" anchor with 60m of galvanised chain
Windlass remote control with chain counter

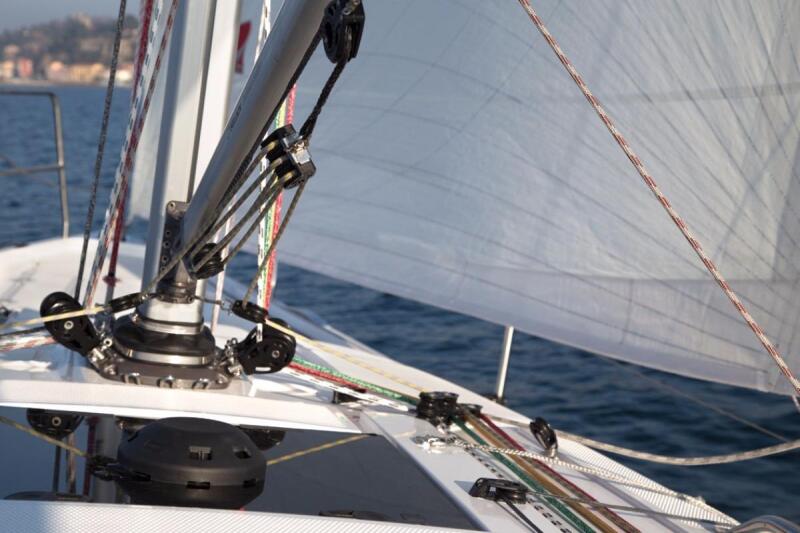

Rig

MAST / STANDING RIGGING
Selden tapered keel stepped performance aluminium anodised fractional mast profile with 2 sets of aft swept spreaders and aluminium
Single line reefing boom
Rigid vang
Selden mainsail sliders
Genoa furling system Selden Furlex 200TD
Windex
Stainless steel standing rigging 1/19
Mechanical backstay tensioner (hasselforce)
Deck light
Tri-colour LED navigation light on top of mast


RUNNING RIGGING
Main halyard, jib halyard
Gennaker halyard
Main sheet, 2 jib sheets 2 gennaker sheets
Gennaker retriever
Outhaul for the main
2 reefing lines
Toping lift

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
